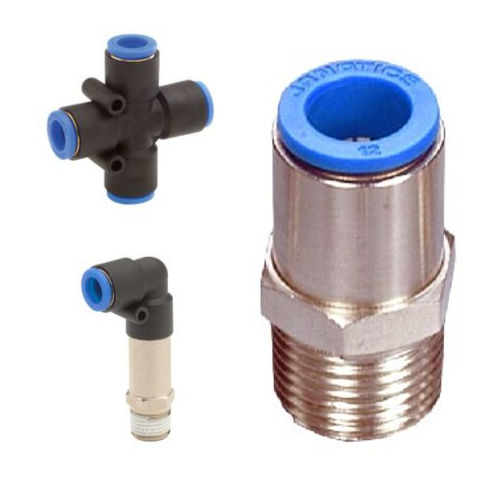

Self Sealing, Cross Union & Plug Fittings

Self Sealing Fittings, Cross Union & Plug  - M5, 1/8, 1/4, 3/8, 1/2, 3/4, 1”
  • Attractive design
  • Compact size
  • Threaded nipples of L, T & Y fittings enable plastic portion to turn by 360°
  • Full area of the inner bore of the tubing is available for flow of fluid
  • Bubble tight sealing of tubes
  • Suitable for both Nylon and PU tubing
  • Easy and quick push-in connection of tube / easy removal of tube by simple pressing of collet cap
  • "New design" - Stainless steel collet
  • Teflon pre-coated male taper threads
  • Maintenance free and long life
  • The fitment and function of tubes are not affected by vibrations due to positive gripping of the tube by the collet
One-touch fittings can be effectively used in all compressed air applications. Some of the pneumatic applications include
  • Pneumatic cylinders (all types)
  • Directional control valves, solenoid valves and other valves
  • Air preparation units like filter, regulator and lubricators
  • Pneumatic control panels
  • All compressed air lines, machinery of all kinds wherever pneumatic systems are used
  • Pneumatic circuits in any industry



* M5 threads are supplied with sealing washer     |     A, A1, A2 - Tube insertion length


* M5 threads are supplied with sealing washer     |     A, A1, A2 - Tube insertion length


* M5 threads are supplied with sealing washer     |     A, A1, A2 - Tube insertion length

While ordering Self sealing, Cross union and Plug Fittings, mention the ordering number given in the corresponding table, and for tubes, mention the ordering number with required length in metres.
