  • Regulator with Tamper Proof

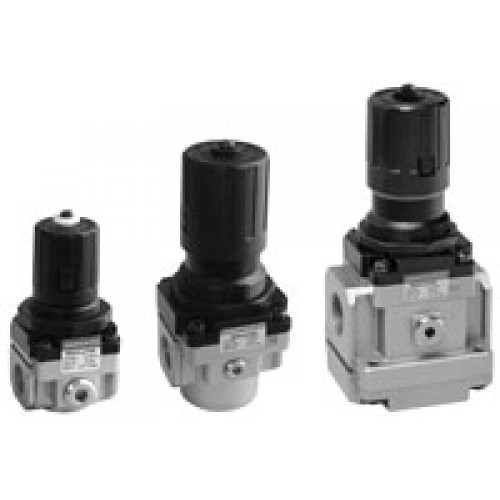

Regulator with Tamper Proof

R1 Series - G1/8, 1/4, 3/8, 1/2, 3/4, 1
  • Conforms to ISO 6953 - 1
  • Suitable for panel and modular mountings
  • Non raising Press to Lock adjusting knob for locking at any set pressure
  • Diaphragm operated, relieving type
  • Pressure compensated by Balanced poppet
  • Flow compensated in models R14, R15 and R17 ( with venturi ) for faster response
  • Good flow and regulating characteristics
  • Tamper proof (Setting secured via screw on knob)
  • Prevents ordinary hand adjustments
  • Outlet pressure settings remain unchanged. These regulators give extra level of security. (Set the desired outlet pressure and lock with screw to prevent further adjustment.)




  •         Note the direction of flow before installation and connect piping accordingly
  •         Flush pipings for dirt, dust, rust and other foreign particles
  •         Install in clean atmosphere
  •         Nipples with taper threads ( R ) to be used with teflon tape. Ensure Teflon tape doesnot enter the unit during tightening. Nipples with straight threads (G) to be used with sealing washer.
Pressure Setting:
Pull the knob and adjust by turning the knob clockwise to increase the pressure. Push the knob back to its locked position. (Turning the knob counter clockwise will reduce the pressure)
