Filter Regulator & Air Lubricator Modular with Piping Adapter - Janatics

  • FRCLM without piping adaptor

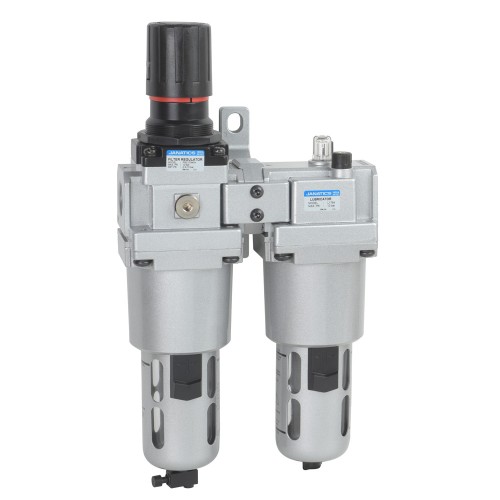

FRCLM without piping adaptor

FRCLM1 series - Sizes : G1/4, G3/8, G1/2, G3/4, G1
  • Modular type for easy and fast maintenance
  • Suitable for wall mounting
  • Filter
    • Bronze filtering element
    • Separator and shield for efficient moisture separation
    • Press type manual drain for easy operation
  • Regulator
    • Diaphragm operated, relieving type
    • Pressure compensated by Balanced poppet
    • Flow compensated in models FRCLM14, FRCLM15 and FRCLM17 for faster response
    • Non raising Press to Lock adjusting knob for locking at any set pressure
  • Lubricator
    • Fog/Mist type Lubricator
    • Fine adjustment of lubrication
    • Lubrication proportional to flow
  • Steel bowl guard, bayonet type on FRCLM14, FRCLM15 and FRCLM17 models and threaded type on FRLM13 model
  • Good flow and regulating characteristics





  • Note the direction of flow before installation and connect piping accordingly
  • Flush pipings for dirt, dust, rust and other foreign particles
  • Install in clean atmosphere
  • Nipples of taper threads ( R ) to be used with teflon tape. Ensure teflon tape doesnot enter the unit during tightening. Nipples of straight threads ( G ) to be used with sealing washer
  • Polycarbonate bowls may get damaged and possibly fail if exposed to synthetic oils, thinner, solvents, trichloroethylene, kerosene or other aromatic hydrocarbons
