  • FRCLM with Internal Autodrain

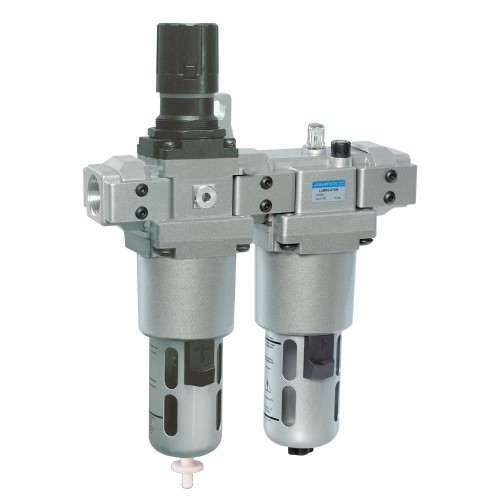

FRCLM with Internal Autodrain

FRCLM1A - G3/8, G1/2, G3/4, G1”
  • Modular type for easy and fast maintenance
  • Suitable for wall mounting
  • Filter
    • Bronze filtering element
    • Separator and shield for efficient moisture separation
  • Internal Autodrain
    • Float type, no electrical connections required
    • Manual drain is also provided / possible
    • Provision for drain tube connection, to take the condensate away from the unit, to keep the working area clean
  • Regulator
    • Diaphragm operated, relieving type
    • Pressure compensated by balanced poppet
    • Flow compensated (with venturi) for faster response
    • Non raising Press to lock adjusting knob for locking at any set pressure
  • Lubricator
    • Fog / Mist type Lubricator
    • Fine adjustment of lubrication
    • Lubrication proportional to flow
  • Steel bowl guard, bayonet type on FRLM14, FRLM15 & FRLM17 models
  • Good flow and regulating characteristics





Pull the knob and adjust by turning the knob clockwise to increase the pressure. Push the knob back to its locked position. ( Turning the knob counter clockwise will reduce the pressure )
