  • Filter with manual drain NPT

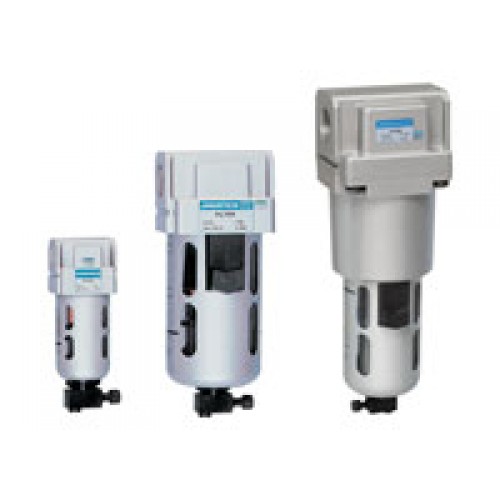

Filter with manual drain NPT

F1 series - Sizes NPT 1/4, 3/8, 1/2, 3/4, 1
  • Conforms to ISO 5782-1
  • Suitable for Modular mounting
  • Steel bowl guard, bayonet type on F14, F15 & F17 models and threaded type on F13 model
  • Press type Manual drain for easy operation
  • Bronze filtering element
  • Separator and shield for efficient moisture separation




  • Note the direction of flow before installation and connect piping accordingly
  • Flush pipings for dirt, dust, rust and other foreign particles
  • Install in clean atmosphere
  • Nipples of taper threads ( R ) to be used with teflon tape. Ensure teflon tape does not enter the unit during tightening. Nipples of straight threads ( G ) to be used with sealing washer
  • Polycarbonate bowls may get damaged and possibly fail if exposed to synthetic oils, thinner, solvents, trichloroethylene, kerosene or other aromatic hydrocarbons.
