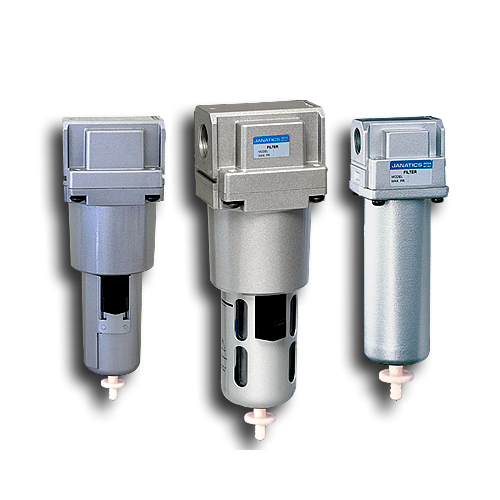

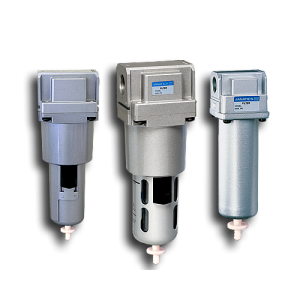

Pneumatic Air Filter NPT | Filter With internal Auto Drain - Janatics

  • Filter with Internal Autodrain NPT

Filter with Internal Autodrain NPT

F1A series - Sizes : NPT 3/8, 1/2, 3/4, 1
  • Suitable for Modular mounting
  • Steel bowl guard, Bayonet type
  • Internal Autodrain
    • Float type, no electrical connections required
    • Provided with manual drain
    • Provision for drain tube connection, to take the condensate away from the unit, to keep the working area clean
  • Bronze filtering element
  • Separator and shield for efficient moisture separation





    • Note the direction of flow before installation and connect piping accordingly
    • Flush pipings for dirt, dust, rust and other foreign particles
    • Install in clean atmosphere
    • Nipples of taper threads ( R ) to be used with teflon tape. Ensure teflon tape does not enter the unit during tightening. Nipples of straight threads ( G ) to be used with sealing washer
    • Polycarbonate bowls may get damaged and possibly fail if exposed to synthetic oils, thinner, solvents, trichloroethylene, kerosene or other aromatic hydrocarbons.
