  • FRLM without piping adaptor - NPT

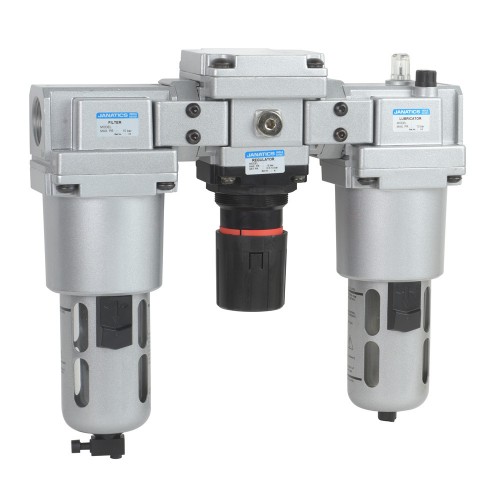

FRLM without piping adaptor - NPT

FRLM1 series - Sizes NPT 1/4, 3/8, 1/2, 3/4, 1
  • Modular type for easy and fast maintenance
  • Suitable for wall mounting
  • Filter
    • Bronze filtering element
    • Separator and shield for efficient moisture separation
    • Press type manual drain for easy operation
  • Regulator
    • Diaphragm operated, relieving type
    •  Pressure compensated by Balanced poppet
    • Flow compensated in models FRLM14, FRLM15 and FRLM17 for faster response
    • Non raising Press to Lock adjusting knob for locking at any set pressure
  • Lubricator
    • Fog/Mist type Lubricator
    • Fine adjustment of lubrication
    • Lubrication proportional to flow
  • Steel bowlguard, bayonet type on FRLM14, FRLM15 and FRLM17 models and threaded type on FRLM13 model
  • Good flow and regulating characteristics





  • Pull the knob and adjust by turning the knob clockwise to increase the pressure. Push the knob back to its locked position. ( Turning the knob counter clockwise will reduce the pressure )
