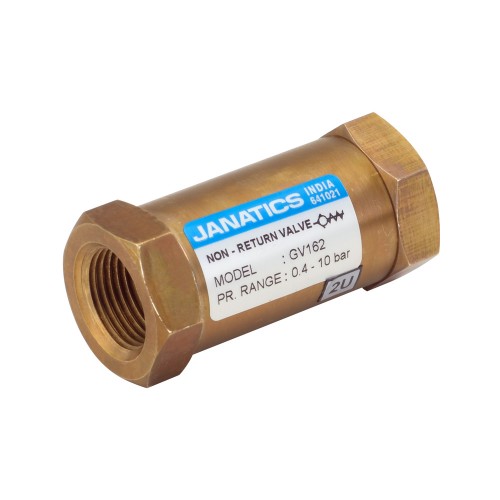

Non Return Valve

GV1 series (Sizes : G1/8, G1/4, G3/8, G1/2)
  • In line mounting
  • Low cracking and closing pressure
  • Bubble tight elastomer seat

The valve shuts off instantaneously against reverse flow (from "OUT" port to "IN" port) and opens at low cracking pressure in the forward direction.




  • Note the direction of flow before installation and connect piping accordingly.
  • Flush piping's for dirt, dust, rust and other foreign particles.
  • Install in clean atmosphere.
  • Nipples of taper threads (R) to be used with Teflon tape. Ensure Teflon tape does not enter the unit during tightening. Straight threads (G) to be used with sealing washer.
