Pneumatic Inline Hand Slide Valve - Janatics

  • Inline Slide Valve

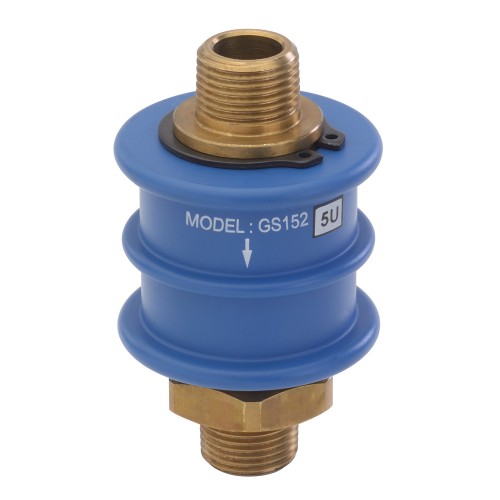

Inline Slide Valve

GS1 series (Sizes : R1/8, R1/4, R3/8, R1/2, R3/4)
  • Inline mounted
  • Sleeve type, saves space
  • Smooth, easy operation
  • Application
    • These valves can be used at the inlet of pneumatic tools like screwdriver, grinder etc., pneumatic systems and near machineries using pneumatic systems, for quick and convenient connecting - disconnecting of compressed air.
  • Operation
    • Moving the sleeve towards " OUT ", connects the air line to the system and moving the sleeve in the opposite direction, will close the inlet port and exhaust the down stream air.




  • Note the direction of flow before installation and connect piping accordingly.
  • Flush pipings for dirt, dust, rust and other foreign particles.
  • Install in clean atmosphere.
  • Use teflon tape on taper threads. Ensure teflon tape does not enter the unit during tightening.
